美國Apogee手持光量子儀MQ-100/MQ-200/MQ-301

MQ-100 在手持式儀表的頂部集成了一個傳感器，用于顯示和存儲測量值。

典型應用包括室外環境、溫室和生長室中植物冠層的 PPFD 測量，以及相同環境中的反射或冠層下（透射）PPFD 測量。

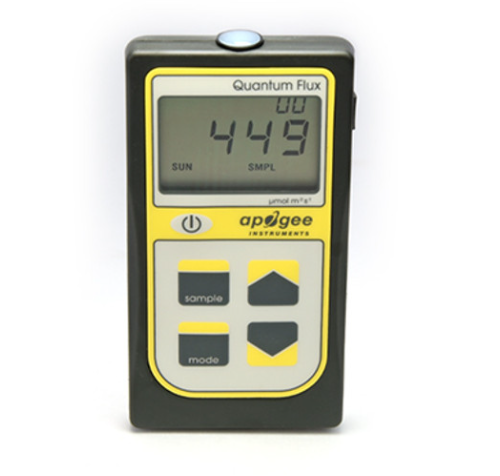

產品圖片1

MQ-100MQ-200MQ-301MQ-303/306
校準不確定度± 5 %
測量重復性Less than 1 %
長期漂移Less than 2 % per year
非線性Less than 1 % (up to 3000 μmol m?2 s?1)
響應時間Less than 1 ms
視野180°
光譜范圍410 to 655 nm (wavelengths where response is greater than 50 % of maximum)
定向（余弦）響應± 5 % at 75° angle
溫度響應0.06 ± 0.06 % per C
操作環境0 to 50 C; less than 90 % non-condensing relative humidity up to 30 C; less than 70 % non-condensing relative humidity from 30 to 50 C; separate sensors can be submerged in water up to depths of 30 m
記錄器尺寸113.9 mm height, 59.9 mm width
傳感器尺寸Integrated with Meter24 mm width, 33 mm height700 mm length, 15 mm width,15 mm height500 mm length, 15 mm width,15 mm height
重量150 g180 g380 g300 g
線纜2 m of shielded, twisted-pair wire; additional cable available; TPR jacket (high water resistance, high UV stability, flexibility in cold conditions)
